Drawing Shapes

When drawing shapes, the sequence matters. That is how the layering system works.

The first object in sequence that is drawn in your code will be at the bottom most layer of your drawing. The last object in sequence that is drawn in your code will be the top most layer of your drawing.

Rectangle

Rectangle(xy, width, height)

Property	Default Value	Description
xy	REQUIRED (No default)	The x and y coordinate of the rectangle's top-left corner as a tuple.
width	REQUIRED (No default)	The width of the rectangle in pixels.
height	REQUIRED (No default)	The height of the rectangle in pixels.
color	"black"	RGB tuple color value, hexadecimal color value, or string containing color name can be used.
border_color	None	Color of the border.
border_width	0	Size of the border in pixels.
dashes	None	Size of the dashes for the border in pixels.
visible	True	True = Shape can be seen. False = Shape cannot be seen.

Example:

rect1 = easy_draw.Rectangle(
    xy = (300, 300),
    width = 200,
    height = 150,
    color = (255, 0, 0),          # Optional Property
    border_color = (0, 0, 0),     # Optional Property
    border_width = 10,            # Optional Property
    dashes = 25                   # Optional Property
    visible = True                # Optional Property
)

Regular Polygon

RegPolygon(nsides, center_xy, radius)

Property	Default Value	Description
nsides	REQUIRED (No default)	The number of sides the polygon has.
center_xy	REQUIRED (No default)	The x and y coordinate of the polygon's center as a tuple.
radius	REQUIRED (No default)	The distance in pixels from the center to any outer point.
color	"black"	RGB tuple color value, hexadecimal color value, or string containing color name can be used.
border_color	None	Color of the border.
border_width	0	Size of the border in pixels.
dashes	None	Size of the dashes for the border in pixels.
visible	True	True = Shape can be seen. False = Shape cannot be seen.

Example:

reg_poly1 = easy_draw.RegPolygon(
    nsides = 8,
    center_xy = (300, 300),
    radius = 100,
    color = (255, 0, 0),      # Optional Property
    border_color = (0, 0, 0), # Optional Property
    border_width = 10,        # Optional Property
    dashes = 25               # Optional Property
)

Polygon

Polygon(points_list)

The above image is just an example. The Polygon can have as many sides as you want, and is dependent on the number of xy coordinates you provide.

Property	Default Value	Description
points_list	REQUIRED (No default)	A list of x y coordinates identifying the points of the polygon. List must have an even number of values.
color	"black"	RGB tuple color value, hexadecimal color value, or string containing color name can be used.
border_color	None	Color of the border.
border_width	0	Size of the border in pixels.
dashes	None	Size of the dashes for the border in pixels.
visible	True	True = Shape can be seen. False = Shape cannot be seen.

The points_list property MUST have an even number of values. It must consist of xy pairs for each point.

Example:

poly1 = easy_draw.Polygon(
    points_list = [25, 25, 150, 25, 200, 200, 100, 250, 25, 200],
    color = (255, 0, 0),       # Optional Property
    border_color = (0, 0, 0),  # Optional Property
    border_width = 10,         # Optional Property
    dashes = 25                # Optional Property
)

Line

Line(xy1, xy2)

OR

Line(points_list)

Property	Default Value	Description
xy1	REQUIRED if points_list is not provided (No default)	The starting xy coordinate of the line as a tuple.
xy2	REQUIRED if points_list is not provided (No default)	The ending xy coordinate of the line as a tuple.
points_list	REQUIRED is xy1 and xy2 are not provided (No default)	A list of x y coordinates identifying the points of the line. List must have an even number of values.
color	"black"	RGB tuple color value, hexadecimal color value, or string containing color name can be used.
thickness	5	The width of the line.
dashes	None	Size of the dashes for the border in pixels.
arrow_start	False	Add an arrow to the start of the line.
arrow_end	False	Add an arrow to the end of the line.
style	"round"	Set property to "round" for round edges and joints and "cut" for squared/cut-off edges and joints.
visible	True	True = Shape can be seen. False = Shape cannot be seen.

Example:

line1 = easy_draw.Line(
    xy1 = (100, 100),
    xy2 = (200, 200),
    thickness = 8,          # Optional Property
    color = (255, 0, 0),    # Optional Property
    dashes = 25             # Optional Property
)

# OR

line1 = easy_draw.Line(
    points_list = [],
    thickness = 8,          # Optional Property
    color = (0, 255, 0),    # Optional Property
    dashes = 25,            # Optional Property
    style = "cut"           # Optional Property
)

Circle

Circle(center_xy, radius)

Property	Default Value	Description
center_xy	REQUIRED (No default)	The center coordinate (x, y) of the circle.
radius	REQUIRED (No default)	The measurement in pixels from the center of the circle to the edge.
color	"black"	RGB tuple color value, hexadecimal color value, or string containing color name can be used.
border_color	None	Color of the border.
border_width	0	Size of the border in pixels.
dashes	None	Size of the dashes for the border in pixels.
visible	True	True = Shape can be seen. False = Shape cannot be seen.

Example:

cir1 = easy_draw.Circle(
    center_xy = (300, 300),
    radius = 100,
    color = (255, 0, 0),          # Optional Property
    border_color = (0, 0, 0),     # Optional Property
    border_width = 10,            # Optional Property
    dashes = 25                   # Optional Property
)

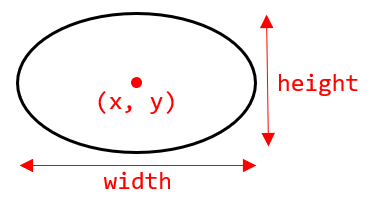

Oval

Oval(center_xy, width, height)

Property	Default Value	Description
center_xy	REQUIRED (No default)	The center coordinate (x, y) of the oval.
width	REQUIRED (No default)	The measurement in pixels of the left edge to the right edge of the oval.
height	REQUIRED (No default)	The measurement in pixels of the top edge to the bottom edge of the oval.
color	"black"	RGB tuple color value, hexadecimal color value, or string containing color name can be used.
border_color	None	Color of the border.
border_width	0	Size of the border in pixels.
dashes	None	Size of the dashes for the border in pixels.
visible	True	True = Shape can be seen. False = Shape cannot be seen.

Example:

oval1 = easy_draw.Oval(
    center_xy = (300, 300),
    width = 100,
    height = 200,
    color = (255, 0, 0),       # Optional Property
    border_color = (0, 0, 0),  # Optional Property
    border_width = 10,         # Optional Property
    dashes = 25                # Optional Property
)

Arc

Arc(center_xy, width, height, sweep_angle)

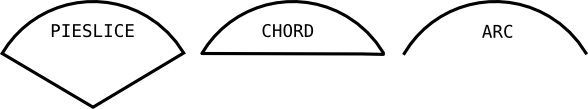

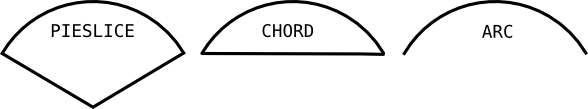

There are 3 different styles:

Note: The "arc" style uses the border_color and border_width only.

Property	Default Value	Description
center_xy	REQUIRED (No default)	The center coordinate (x, y) of the circle used to create the arc.
width	REQUIRED (No default)	The width of the circle used to create the arc.
height	REQUIRED (No default)	The height of the circle used to create the arc.
sweep_angle	REQUIRED (No default)	The amount of the arc to show. From 0 to the angle in degrees identified.
color	"black"	RGB tuple color value, hexadecimal color value, or string containing color name can be used.
border_color	None	Color of the border.
border_width	0	Size of the border in pixels.
dashes	None	Size of the dashes for the border in pixels.
style	"pieslice"	The arc comes in three styles choices: "pieslice", "chord", and "arc"
visible	True	True = Shape can be seen. False = Shape cannot be seen.

Example:

arc1 = easy_draw.Arc(
    center_xy = (300, 300),
    width = 100,
    height = 100,
    sweep_angle = 90,
    style = "chord",           # Optional Property
    color = (255, 0, 0),       # Optional Property
    border_color = (0, 0, 0),  # Optional Property
    border_width = 10,         # Optional Property
    dashes = 25                # Optional Property
)
